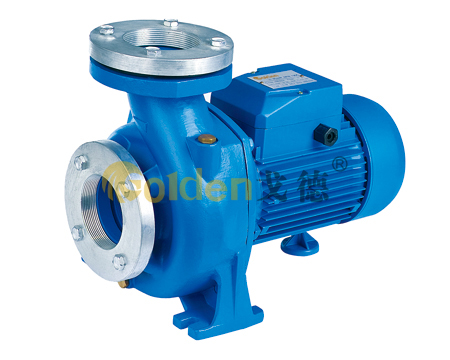

NFM/NFW Series Centrifugal Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
NFM/NFW pumps are specifically designed to achieve high delivery rates with low to medium heads for industrial and agricultural use. Two flanges with screw make it installation and maintenance simple and easy. Its volute and impeller make it able to pump water that is even fairly dirty. High delivery rates under continuous or heavy duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, river, wells and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads.
- Technical Parameters

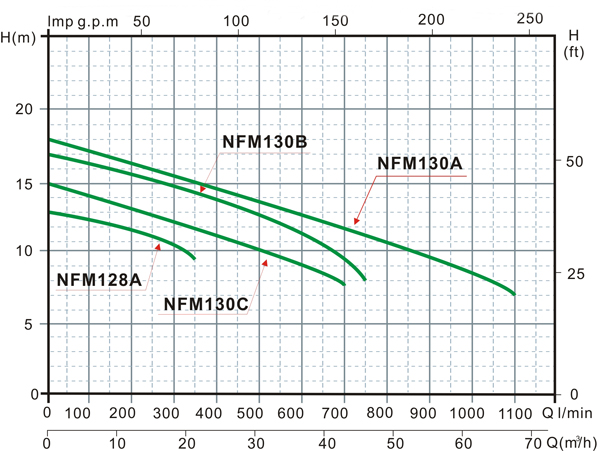

- Performance curves
- PDF Download
TECHNICAL DATA
TYPE Power Ampere R.P.M Q.max
(I/min)H.max
(m)S.Head
(m)Pipe Dia LxWxH
(mm)N.W
(kg)KW HP 1~220V 3~380V NFW-100 1.0 0.75 5 - 2850 220 17 9 1 1/2"x1 1/2" 350x180x215 13.2 NFW-150T 1.5 1.1 7.5 2.7 380 16 2"x2" 370x210x250 18.1 NFW-200T 2.0 1.5 9.5 3.5 400 20 19.3 NFW-150A/T 1.5 1.1 7.5 2.7 800 11 3"x3" 435x265x350 32 NFM-150/T 36 NFW-200A/T 2.0 1.5 9.5 3.5 900 19 34 NFW200/T 38 NFW-300/T 3.0 2.2 13.5 5 1000 19 37 NFM-300/T 41 NFW-300A/T 3.0 2.2 13.5 5 1200 15 4"x4" 435x285x350 38.6 NFW-400/T 4.0 3.0 - 7.2 1300 18 520x285x350 45 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
