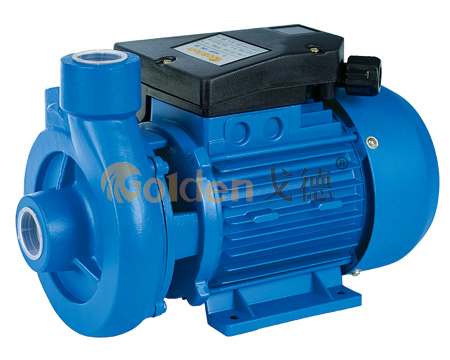

DK Series Centrifugal Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
DK pumps are recommended for pumping water and chemically non-aggressive liquid. With an open impeller, DK pumps are designed pumping fairly large amounts of impurities without fault of clogging, suitable for irrigation, industrial applications, etc. As with impeller cantilevered on the motor shaft directly, the DK pumps have a compact size, very reliable, simple to use and almost maintenance-free, It can be installed horizontally or vertically.
- Technical Parameters

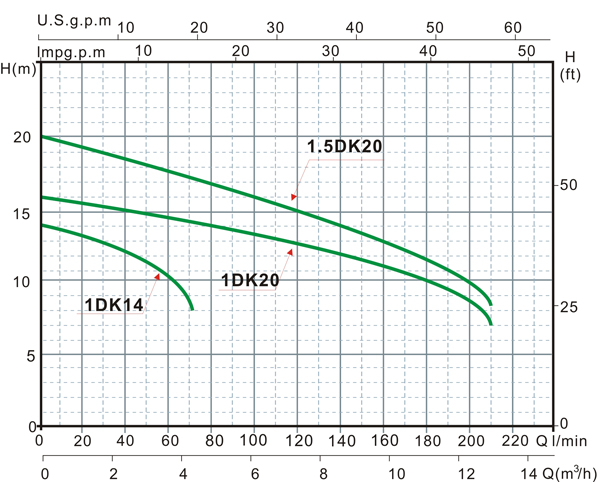

- Performance curves
- PDF Download

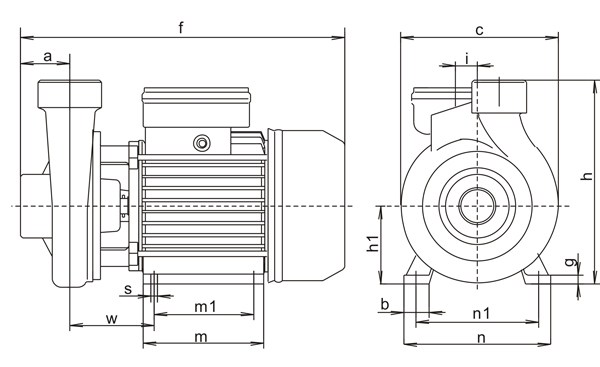

DIMENSIONS
TYPE Power 12Capacitor
(μF)Ampere
l max.Q.max(I/min) 0 40 70 80 120 160 200 240 DNA DNM N.W
(kg)PACKAGE DIMENSION
LxWxH(mm)a
f m3/h 0 2.4 4.2 4.8 7.2 9.6 12 14.4 NW GW L 1DK14 0.45 0.33 12 2.13 H
(m)14.7 12.9 11.5 10.8 7 - - - 1" 1" 7.8 290 145 190 1.5DK18 0.75 0.55 16 3.6 15.6 14.3 13.5 13 10.8 7.5 3.5 - 1 1/2" 1 1/2" 11 310 175 210 1.5DK20 1 0.75 20 4.5 17.6 16.7 18.5 18 13 10.5 7 3 1 1/2" 1 1/2" 12.2 310 175 210
TECHNICAL DATA
TYPE Power Capacitor
(μF)Ampere
l max.Q.max(I/min) 0 50 100 150 200 250 300 350 400 450 DNA DNM N.W
(kg)PACKAGE DIMENSION
LxWxH(mm)KW HP (m3/h) 0 3 6 9 12 16 18 21 24 27 2DK20C 1.5 1.1 30 6.5 H
(m)20 19.5 19 18 17 14.5 12 9
2" 2" 20.5 380 230 255 2DK20 2 1.5 30 9.4 23 23.2 23 22.5 22 21 20 18.5
2" 2" 21.5 380 230 255 2DK30 3 2.2 45 10.2 30 39.5 29 28 27 25.5 24 22 19.2 16.5 2" 2" 26 400 235 305 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
