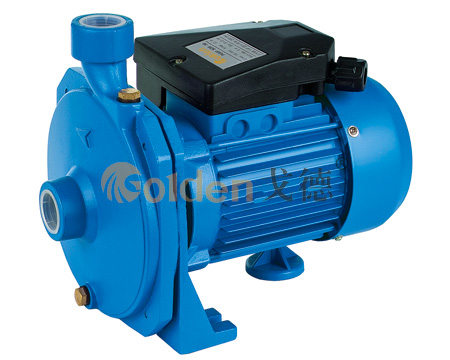

SCM Series Centrifugal Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
SCM series are single stage centrifugal pumps, suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids.
- Technical Parameters

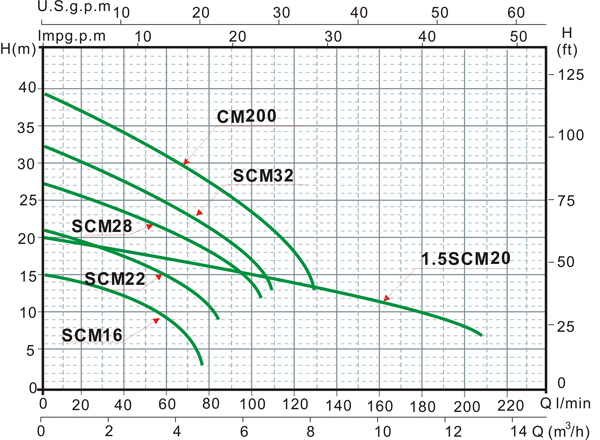

- Performance curves
- PDF Download

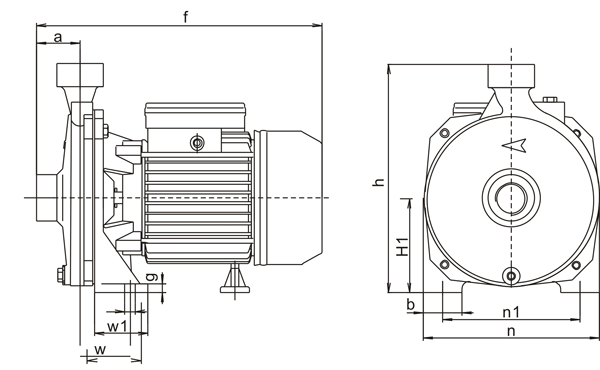

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h H1 c w w1 n n1 g s NW GW L W H 20'Cont SCM16 51 286 205 85 162 47 40 110 150 9 10 6.5 7 310 165 235 2100 SCM22 51 286 205 85 162 47 40 110 150 9 10 7 7.5 310 165 235 2100 SCM28 45 297 226 97 182 53 55 142 150 9 11 9.5 10 10 175 235 1850 SCM32 45 297 237 97 182 53 55 142 180 9 11 12.8 13.5 9.5 205 260 1850 1.5SCM20 45 313 222 97 182 53 55 142 150 9 11 13.2 14 12.8 210 265 1500 SCM200 44 340 285 115 200 61 55 180 220 12 13 19 20 13.2 210 320 1200
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 20 40 60 80 100
140 200 SCM16 0.3 0.4 1.6 8 15 79 1"× 1" 8 15 12.5 7
SCM22 0.37 0.5 2.6 12 21 86 1"× 1" 8 19 17 13 10
SCM28 0.55 0.75 3.8 16 27 105 1"× 1" 8 24.5 23 18 13 2
SCM32 0.75 1 4.8 20 32 110 1.5"× 1.5" 8 31 28 24
1.5SCM20 0.75 1 4.8 20 20 210 1"× 1" 8 19 19 19 17
16 14 SCM200 1.1 1.5 6.8 30 39 130 1"× 1" 8 39 37 36 33
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
