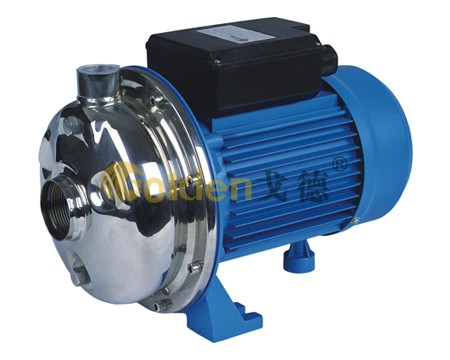

STCM Series Stainless Steel Centrifugal Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
STCM series stainless steel centrifugal pumps, it's suitable for both domestic and industrial applications to convey clean liquids and tightly-aggressive chemical fluids. the hydraulic characteristic is lower head and middle capacity.
- Technical Parameters
- Performance curves
- PDF Download

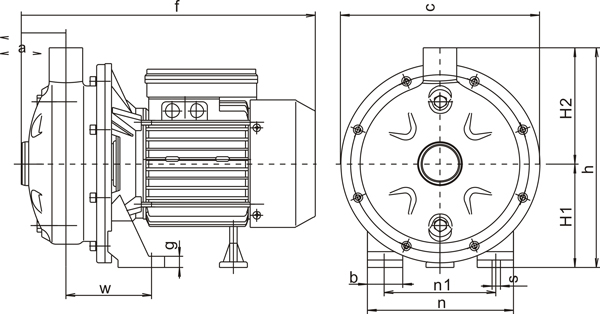

DIMENSIONS
10.6 Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h H1 H2 c n n1 w b g s NW GW L W H 20'Cont STCM550 48 317 237 112 125 214 158 120 92 39 12 9 8 9 345 233 273 1400 STCM750 48 317 237 112 125 214 158 120 92 39 12 9 8.5 9.5 345 233 273 1400 STCM1100 48 317 237 112 125 214 158 120 92 39 12 9 9.6 10.6 345 233 273 1350
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 25 50 75 100 150 200 STCM550 0.55 0.75 3.7 16 17 150 1.25"× 1" 8 17 16 13.5 8
STCM750 0.75 1 4.6 20 18 180 1.25"× 1" 8 18 18 17.5 16 12
STCM1100 1.1 1.5 6.6 30 22 200 1.25"× 1" 8 21.5 20.5 20 18 17 5 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
