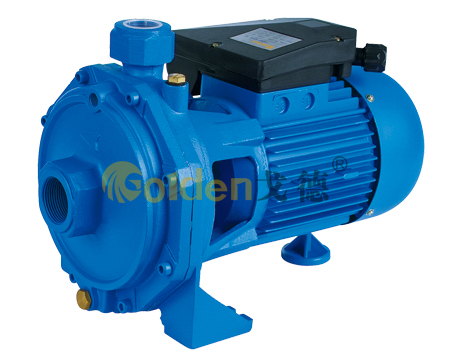

SCM2 Series Two Stages Centrifugal Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
The SCM2 series are with two impellers back to back, Because of two impeller to gain energy, it is an obvious choice that there is need for high head values but if hard to reach with single impeller centrifugal pumps. Suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. Particularly be used for increasing the supply pressure, feeding boilers and loading extremely.
- Technical Parameters

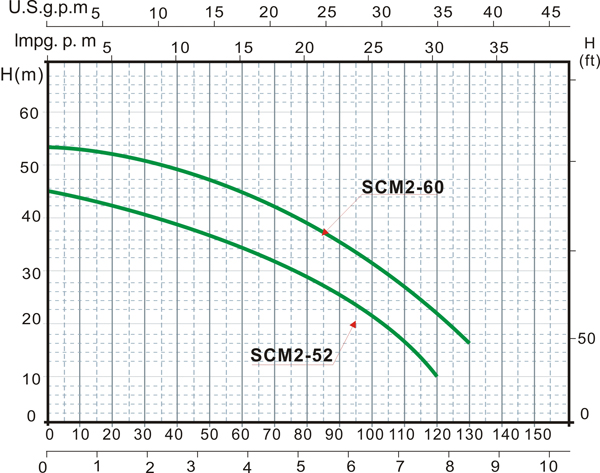

- Performance curves
- PDF Download

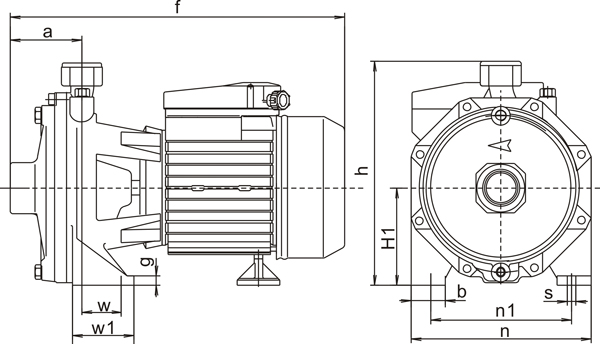

DIMENSIONS
TYPE Power μF Ampere
I max.Q(1/min) 0 20 40 60 80 100 120 140 DNA DNM PACKAGE DIMENSION
LxWxH(mm)KW HP (m3/h) 0 1.2 2.4 3.6 4.8 6.0 7.2 8.4 SCM2-45 1 0.75 20 5.5 H(m) 40 35 29 21 12.5 - - - 1 1/4" 1" 370 210 260 SCM2-52 1.5 1.1 30 8.5 45 40 35 29 22 15 6 - 1 1/4" 1" 425 235 290 SCM2-55 2 1.5 30 9.7 50 46.5 42 37.5 31 25 17 5.5 1 1/4" 1" 425 235 290
TECHNICAL DATA
TYPE Power Q(1/min) 0 25 50 100 125 150 175 200 250 300 400 500 600 DNA DNM PACKAGE DIMENSION
LxWxH(mm)KW HP (m3/h) 0 1.5 3 6 7.5 9 10.5 12 15 18 24 30 36 SCM2-60 3 2.2 H(m) 32.5 58 54 37 22 15.7 - - - - - - - 1 1/2" 1" 425 235 290 SCM2-70 4 3 66.9 63.9 63.3 58.4 55.2 51.5 47.8 44.2 - - - - - 1 1/2" 1 1/4" 580 620 480 SCM2-80 5.5 4 78.7 77.1 76.1 72 69.4 66 62.4 58.7 - - - - - 1 1/2" 1 1/4" 640 350 440 SCM2-90 7.5 5.5 90 89 88.6 84.8 82.3 79.2 76.3 72.5 32.7 - - - - 1 1/2" 1 1/4" 670 360 470 SCM2-100 15 11 98.7 98.6 98.5 98 97 96.4 95.3 94.2 91.5 87.6 78.2 62.3 40.9 2" 1 1/2" 780 390 500 SCM2-130 20 15 128 126 122 121.7 120 118 116 115 109.6 106 93.4 65.6 50 2" 1 1/2" 820 390 500 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
