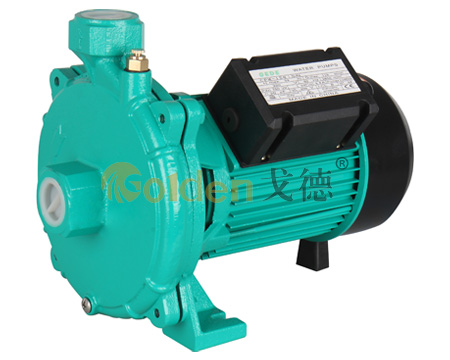

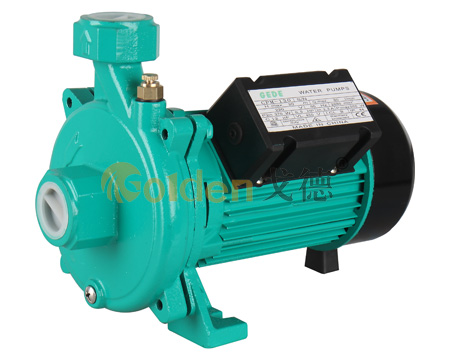

CPM-W Series Centrifugal Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
CPM series are single stage centrifugal pumps, suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with higher head and smaller capacity
- Technical Parameters

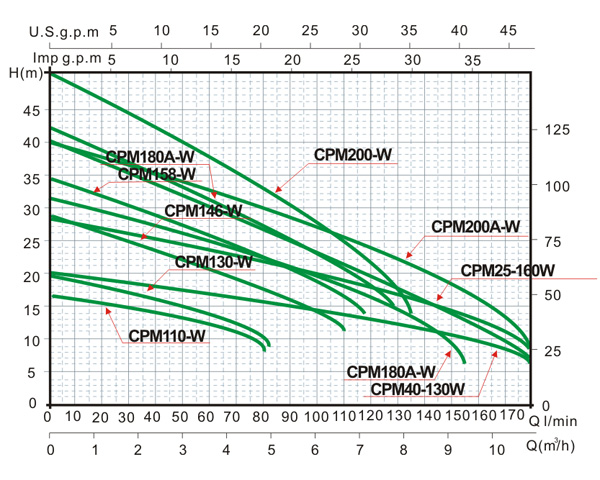

- Performance curves
- PDF Download
DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h H1 H2 n n1 w w1 b g s NW GW L W H 20'Cont CPM110-W 38 260 195 77 118 148 118 48 45 32 9 10 8 8.4 310 170 230 2200 CPM130-W 43 274 210 88 127 165 135 52 41 32 9 10 8.4 8.8 310 170 230 2100 CPM146-W 44 298 242 97 145 190 160 58 43 33 10 10 9.4 10.1 340 205 260 1500 CPM158-W 44 298 242 97 145 190 160 58 43 33 10 10 12.3 13 340 205 260 1400 CPM180-W 59 345 300 120 180 235 200 80 60 40 12 12 20.7 20.7 390 250 330 750 CPM200-W 59 345 300 120 180 235 200 80 60 40 12 12 21.7 21.7 390 250 330 750 CPM40-130W 44 308 240 97 143 190 160 56 26 32 11 10 12.8 12.8 340 205 260 1400 CPM25-160W 57 370 261 107 154 206 150 83 53 45 11 10 20 20 400 255 325 750 CPM180A-W 53 340 275 112 163 210 170 80 60 35 10 12 20.5 20.5 390 250 330 750 CPM200A-W 53 340 292 117 175 230 200 80 60 40 12 12 21.5 21.5 390 250 330 750
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 20 40 50 60 70 80 100 120 200 CPM110-W 0.22 0.3 0.6 8 16 80 1"× 1" 8 14 13 11 10
CPM130-W 0.37 0.5 2.5 12 20 80 1"× 1" 8 19 16 15 13
CPM146-W 0.55 0.75 3.8 16 28 110 1"× 1" 8 28 27 26 26 25 22 18
CPM158-W 0.57 1 4.8 20 34 118 1"× 1" 8 34 34 32 32 30 25 22
CPM180-W 1.1 1.5 6.6 30 42 128 1.25"× 1" 8 42 38 35 34 33 30 25 16
CPM200-W 1.5 2 8.8 40 50 132 1.25"× 1" 8 29 46.5 43 42 39 36 30 20
CPM40-130W 0.75 1 4.8 20 20 190 1.5"× 1.5" 8 18 18 17 17 17 16 16 15 10 CPM25-160W 1.1 1.5 6.6 30 28 180 1.5"× 1" 8 32 30 29 27 27 27 26 24 14 CPM180A-W 1.1 1.5 6.6 30 32 155 1"× 1" 8 30 28 27 26 24.5 23 20 16
CPM200A-W 1.5 2 8.8 40 40 190 1"× 1" 8 38 36 35 33.5 32 30 27 23
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
