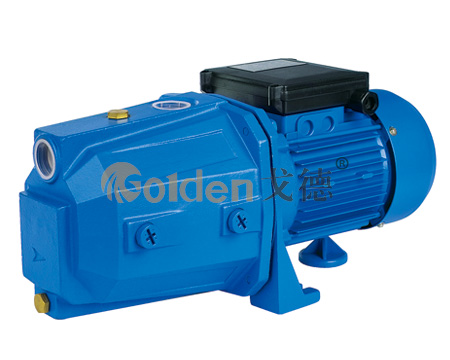

JET-P Series Self-Priming JET Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
JET-P series are suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and increasing of water pressure.
- Technical Parameters

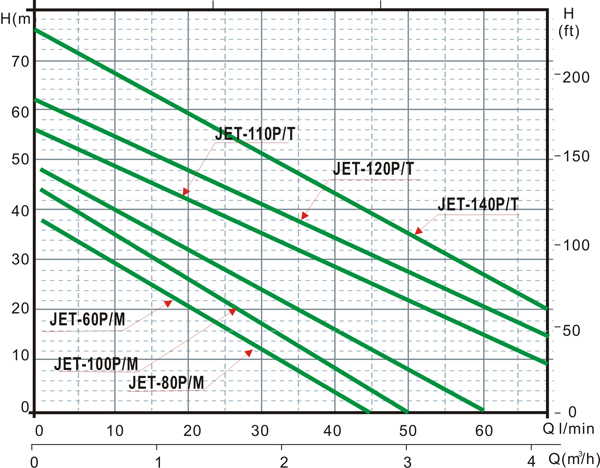

- Performance curves
- PDF Download

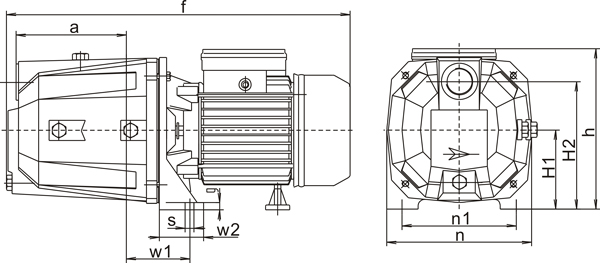

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h H1 H2 w1 w2 n n1 g s NW GW L W H 20'Cont JET-60P 138 428 200 98 158 79 55 182 142 9 11 12.7 13.5 480 210 220 1340 JET-80P 138 428 200 98 158 79 55 182 142 9 11 13.6 14.4 480 210 220 1340 JET-100P 138 428 200 98 158 79 55 182 142 9 11 14.0 15.2 480 210 220 1340 JET-110P/T
138 428 200 98 158 79 55 182 142 9 11 15.2 16 480 210 220 1340 JET-120P/T
100 550 258 120 200 170 50 235 200 12 12 34 36 580 255 330 400 JET-140P/T
100 550 258 120 200 170 50 235 200 12 12 36 38 580 255 330 400
TECHNICAL DATA
TYPE Power Current
R.P.M Q.max
(I/min)H.max
(m)S.Head
(m)HP KW 1~220V 3~380V JET-60P 0.5 0.37 3 - 2850 45 38 9 JET-80P 0.75 0.55 3.6 - 2850 50 45 9 JET-100P 1 0.75 4.8 - 2850 60 48 9 JET-110P/T
1.5 1.1 7.5 2.7 2850 80 56 9 JET-120P/T
2 1.5 9.6 3.5 2850 90 62 9 JET-140P/T
3 2.2 13.5 5.0 2850 100 75 9 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
