JETS Series Self-Priming JET Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃

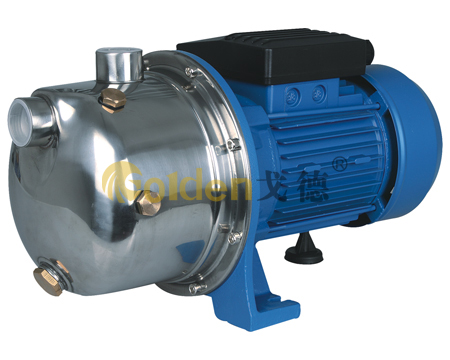

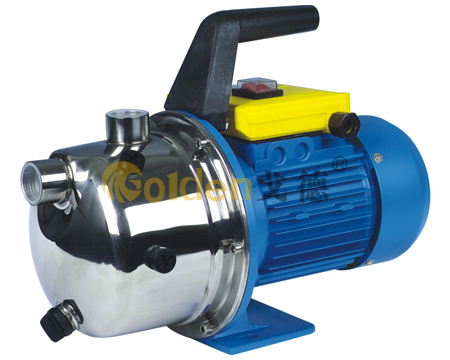

Stainless steel pump body JETS series self-priming electric pumps,Plastic pump body JETS series self-priming electric pumps , equipped with waterproof plug & power cord and watertight switch, It is suitable for gardening, water supply, washing, increase water pressure, etc. It is usually can be combined with a pressure switch and a surge tank to be used as a Domestic Water System for distributing water.
- Technical Parameters

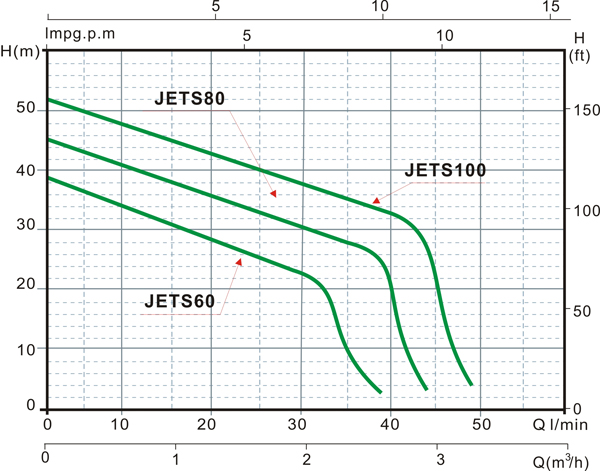

- Performance curves
- PDF Download

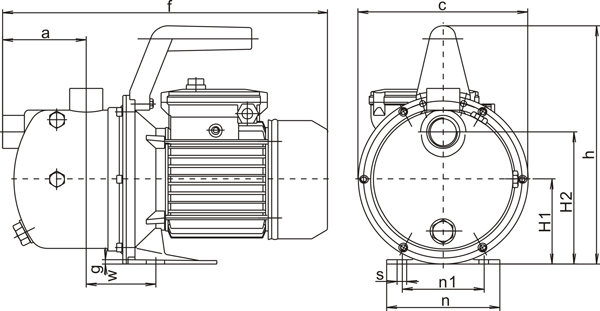

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h H1 w H2 W1 W2 n n1 g s NW GW L W H 20'Cont JETS60 97 378 230 99 212 153 104 184 130 94 7 11 7.2 8 420 220 220 1400 JETS80 97 378 230 99 212 153 104 184 130 94 7 11 7.8 8.6 420 220 220 1400 JETS100 97 378 230 99 212 153 104 184 130 94 7 11 7.5 9.3 420 220 220 1200
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 5 10 15 20 25 30 40 50 JETS60 0.37 0.5 3.2 12 38 42 1"× 1" 8 39 36 32 29 25 22
JETS80 0.55 0.75 3.8 16 45 46 1"× 1" 8 42 40 37 35 33 31 10
JETS100 0.75 1 5 20 50 52 1"× 1" 8 46 44 41 39 36 35 28
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
