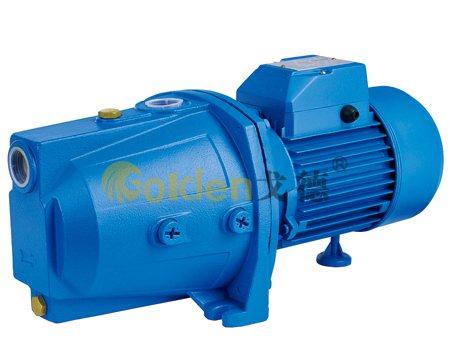

JSP Series Self-Priming Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
Advantage:
1.Dry running resistance: no water in the pump body when the machine automatically stop after 7 minutes.2.Antirust function: running down after 72 hours, can automatically boot operation, to prevent pump rusty due to long time not running.
3.No impact voltage stabilizing function: open the faucet water pressure is lower than the start-up pressure pipeline, water pump operation automatically, until the tap shut down seven minutes after downtime, unlike the old mechanical switch frequently jump, cause pipeline hydraulic impact and current impact.
- Technical Parameters

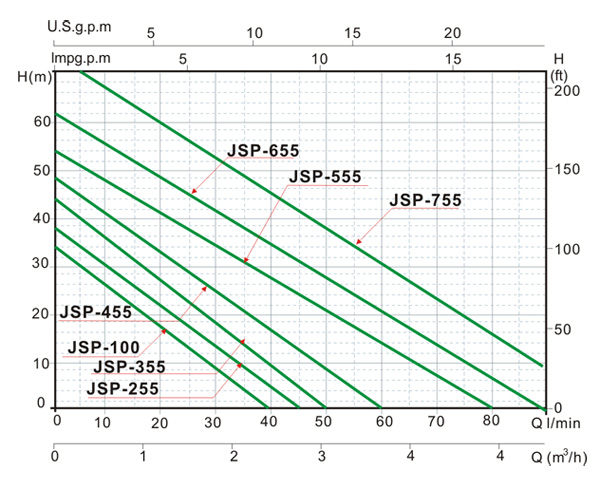

- Performance curves
- PDF Download
PERFORMANCE
TYPE Power Ampere R.P.M
Q.Max
(l/min)H.max
(m)S.Head
(m)S.Head
(m)LxWxH
(mm)N.W
(kg)KW HP 1~220V 3~380V JSP-100 0.33 0.45 2.7 - 2850 40 35 9 1 "x1 " 420x170x180 10.2 JSP-255 0.37 0.5 3 - 2850 45 38 9 1 "x1 " 420x170x180 14.0 JSP-355 0.55 0.75 3.6 - 2850 50 45 9 1 "x1 " 460x210x230 15.1 JSP-455 0.75 1 4.8 - 2850 60 48 9 1 "x1 " 460x210x230 16.0 JSP-555 1.1 1.5 7.5 2.7 2850 80 56 9 1 1/4"x1 1/4" 590x218x258 26 JSP-655 1.5 2 9.6 3.5 2850 90 62 9 1 1/4"x1 1/4" 590x218x258 27.5 JSP-755 2.2 3 13.5 5.0 2850 100 75 9 1 1/2"x1 1/2" 590x218x258 29 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
