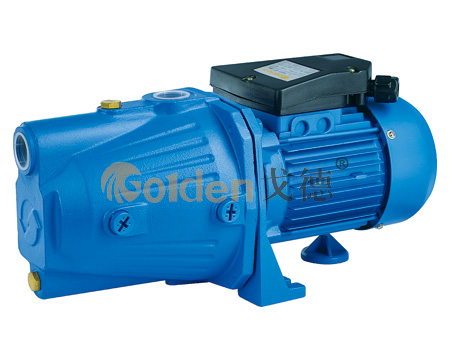

JET-B Series Self-Priming JET Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
These three series self-priming JET pumps equipped with same Venturi system each. They are suitable to convey clean water and non-aggressive chemical fluids, even with liquid mixed with gas, from well in continuous duty; they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. It is normally advisable to install a foot valve on the suction branch.
- Technical Parameters

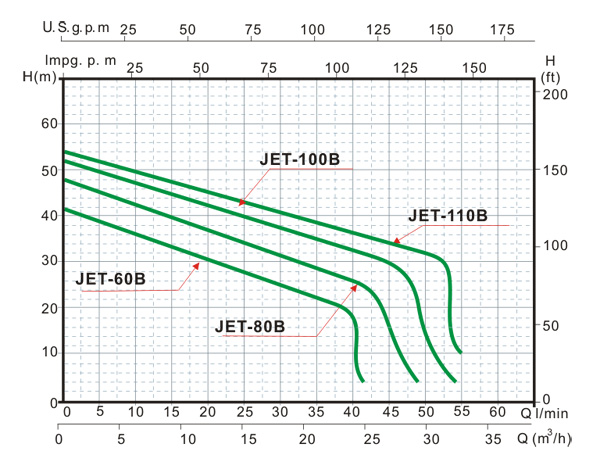

- Performance curves
- PDF Download

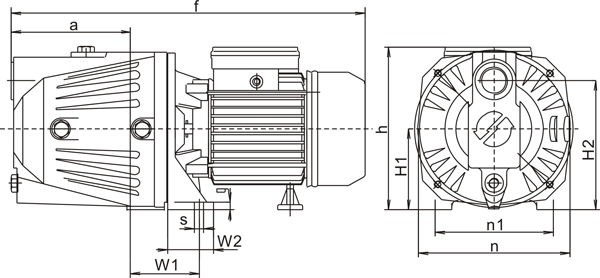

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing QTY.
20'Conta
f h H1 H2 W1 W2 n n1 g s NW GW L W H JET-60B 143 425 196 98 156 79 55 182 142 9 11 12.8 13.3 465 210 220 1340 JET-80B 143 425 196 98 156 79 55 182 142 9 11 13.2 14 465 210 220 1340 JET-100B 143 425 196 98 156 79 55 182 142 9 11 13.9 14.7 465 210 220 1340 JET-110B 143 425 196 98 156 79 55 182 142 9 11 14.5 15.3 465 210 220 1340
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 5 10 20 30 40 50 JET-60B 0.37 0.5 3.2 12 38 42 1"× 1" 8 37 33.5 28 22 18
JET-80B 0.55 0.75 3.8 16 45 46 1"× 1" 8 44 40 34.5 30.5 26.8
JET-100B 0.75 1 5 20 50 52 1"× 1" 8 48 44.5 39.5 36 32 13 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
