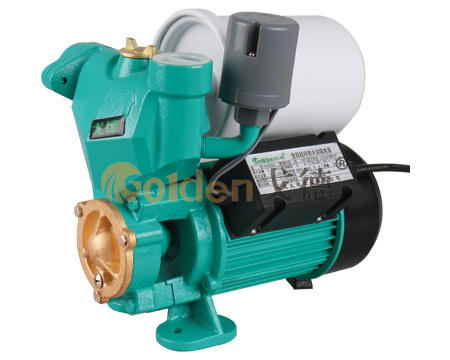

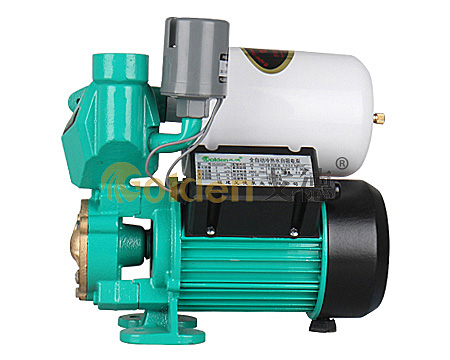

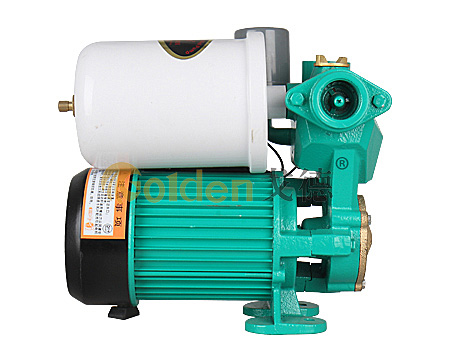

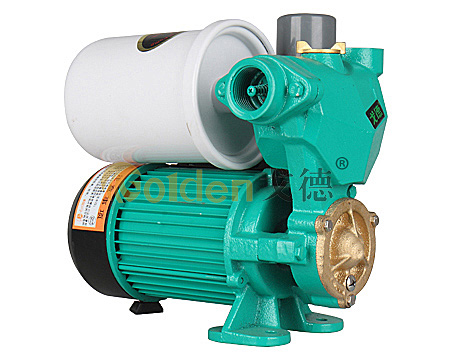

KJ Series Centrifugal Pumps
This series electric peripheral pump is an ideal and new type energy-efficient household pump.The pump is widely used in domestic applications, supply water from wells, gain the tap water pressure, garden imgation, and supply the water to the vegetable greenhouses. The electric pump especially suitable to gain the pressure in the hot water pipeline when needed. It also can prevent the instability of the water temperature when supplying the water.
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
- Main Features
- Technical Parameters

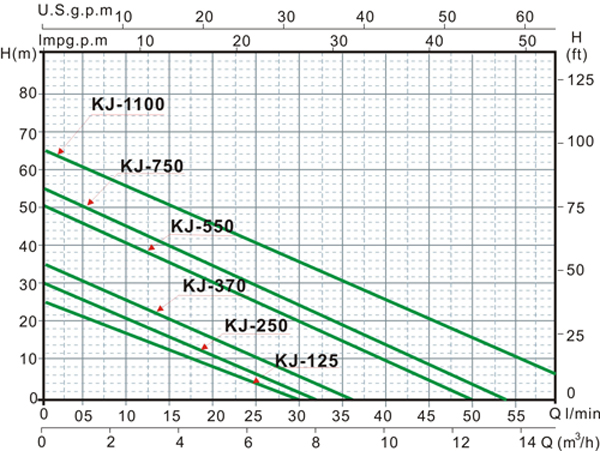

- Performance curves
- PDF Download
Working Conditions
1.The medium temperature should between zero degree and 90 degree
2.The medium PH should between 6.5 and 8.5
3.The volume of the solid impurities should not excess 0.1 percent, and the solid particle size less than 0.2 mm.
4.Rated voltage is 220v,and the rated frequency is 50Hz. The voltage fluctuation should not exceed the certified value between 0.9 times and 1.1 times.
TECHNICAL DATA
Model Power
(W)Capacitor(μF) Curtent(A) H.Max (m) Q.Max (L/min) S.Head (m) Pipe Size(m) Recommend the
use of floorKJ-125 125 8 1.5 25 30 9 1"*1" 2nd floor or below KJ-250 250 10 1.8 30 33 9 1"*1" 3nd floor or below KJ-370 370 10 2 35 36 9 1"*1" 4nd floor or below KJ-550 550 12 3 50 50 9 1"*1" 8nd floor or below KJ-750 750 20 3.5 55 58 9 1"*1" 10nd floor or below KJ-1100 1100 25 4.8 65 66 9 1"*1" 12nd floor or below Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with motor protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
