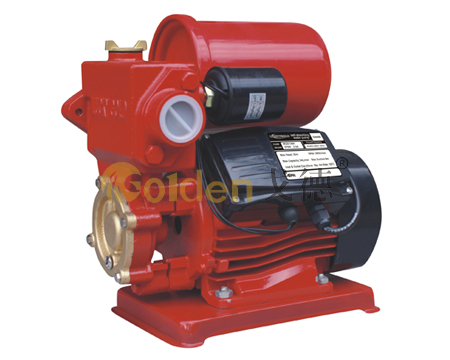

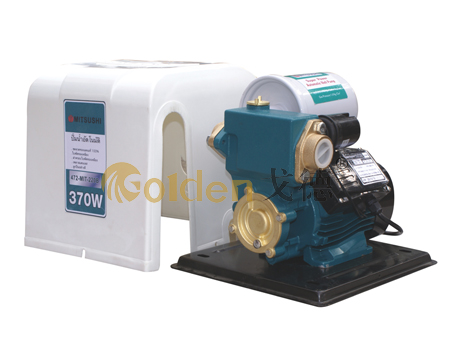

PS130-L Series Self-Priming Peripheral Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
PS130-L Series automatic self-prime water pumps are suitable for pumping clean water. Consisted of a water pump, a tank and a pressure switch, this series is relatively simple construction, no expensive but reliable and safety. It is suitable to grant the correct pressure to modern domestic and industrial water systems.
- Technical Parameters
- Performance curves
DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h c H1 H2 H3 m1 m n n1 l w w1 g s NW GW L W H 20'Cont STP-65 46 258 249 208 71 211 181 60 80 - 95 129 - 59 - 10 7.7 8.5 310 230 285 1750 STP-75 46 258 249 208 71 211 181 60 80 - 95 129 - 59 - 10 7.7 8.5 310 230 285 1750
TECHNICAL DATA
TYPE
Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)Capacity I/min KW HP 5 10 15 20 25 30 35 40 PS130-L 0.37 0.5 1.4 8 32 35 1"× 1" 9 32 26 21 16 11 6 1
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
