KJDZ Series Centrifugal Pumps

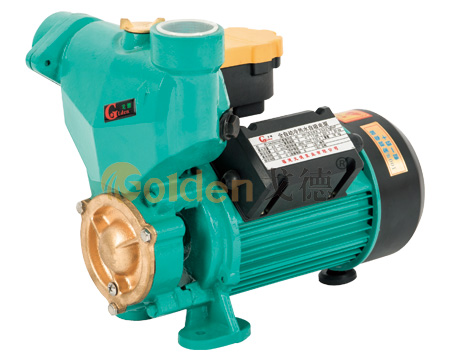

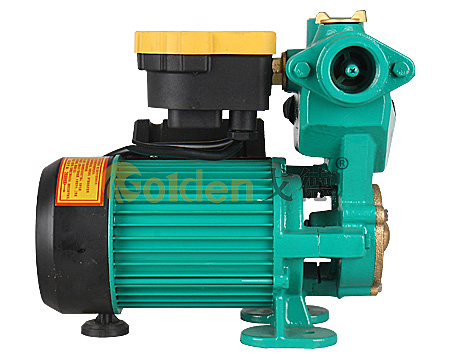

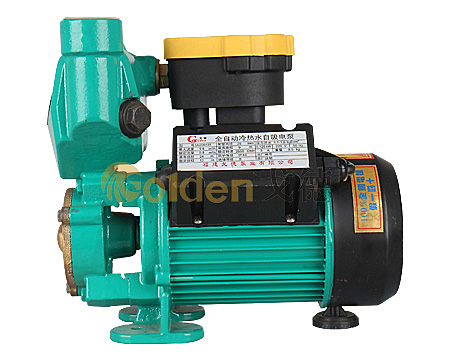

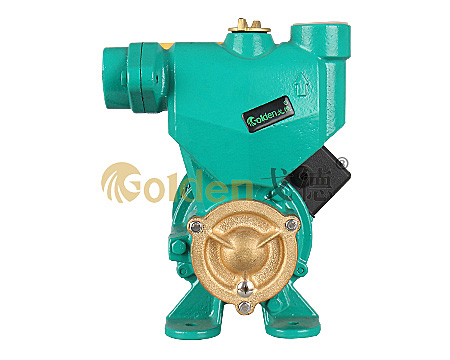

KGDZ series Auto self-priming pump is a self-priming clean water pump, it is made of high quality mechanical seal assembly convenient installation, light weight, covers an area of less, less consumption, strong self-priming capacity, is a good household devices.
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
- Main Features
- Technical Parameters

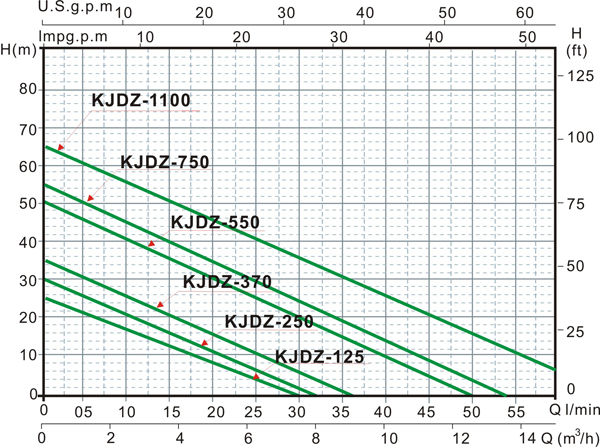

- Performance curves
- PDF Download
- CONSTRUCT
PUMP
Pump Body:Cast Iron/Cast Iron with brass insert Impeller:Brass/ Plastic with brass insert
Mechanical Seal:Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase Heavy Duty Continuous Work Motor Housing:Steel-plate Shaft:Carbon Steel/Stainless Steel Insulation:Class B/Class F Protection:IP44/IP54
Cooling:External Ventilation
Applications
househole water supply
water supply system
cooling system
boost system
TECHNICAL DATA
Model Power
(W)Capacitor(μF) Curtent(A) H.Max (m) Q.Max (L/min) S.Head (m) Pipe Size(m) Recommend the
use of floorKJDZ-125 125 8 1.5 25 30 9 1"*1" 2nd floor or below KJDZ-250 250 10 1.8 30 33 9 1"*1" 3nd floor or below KJDZ-370 370 10 2 35 36 9 1"*1" 4nd floor or below KJDZ-550 550 12 3 50 50 9 1"*1" 8nd floor or below KJDZ-750 750 20 3.5 55 58 9 1"*1" 10nd floor or below KJDZ-1100 1100 25 4.8 65 66 9 1"*1" 12nd floor or below Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with motor protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
