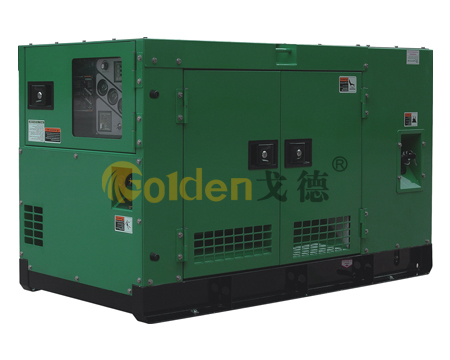

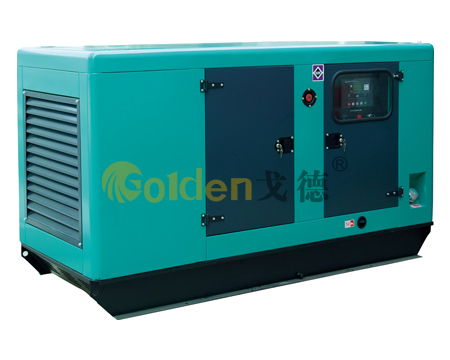

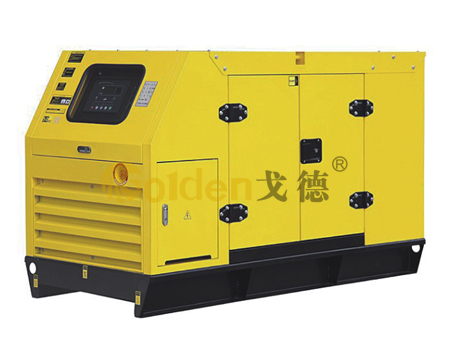

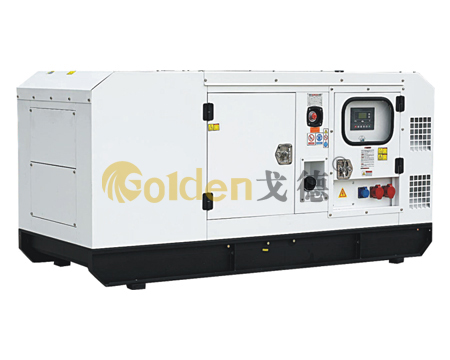

GF3 Series Low Noise Generating Sets
With a compact structure of small size and little weight a soundproof shield which has an elegant appearance is easy to be assembled or disassembled and reduces noise level effectively. the sets are operated conveniently.
It use famous brand engine, advanced generator made designs of one's own and completely sealed automatic voltage regulator(AVR). the performances in which is excellent. the running is reliable. Technical parameter of low noise diesel generating sets rated voltage 400V. rated speed 1500r/min.rated frequency 50Hz. rated power factor 0.8(lagging).
It use famous brand engine, advanced generator made designs of one's own and completely sealed automatic voltage regulator(AVR). the performances in which is excellent. the running is reliable. Technical parameter of low noise diesel generating sets rated voltage 400V. rated speed 1500r/min.rated frequency 50Hz. rated power factor 0.8(lagging).
- Technical Parameters
- PDF Download
TECHNICAL DATA
Model
GF3-3 GF3-5 GF3-8 GF3-10 GF3-12 GF3-15 GF3-20 GF3-24 GF3-30 GF3-40 Rated output(kw) 3 5 8 10 12 15 20 24 30 40 Rated voltage(v) 230/400 230/400 400 400 400 400 400 400 400 400 Rated current(A) 13/5.4 21.7/9 14.5 18 21.6 27 36.1 43.3 54.1 135.1 Type R175ND S195ND 295D 295D 2100D 495D 495D 4100D 495ZD 4105ZD 12h power (kw) 3.7 5.7 13.5 13.5 15 26.5 26.5 30.1 36 56 Fuel consumption (g/kw.h) 220 225 258.4 258.4 263.8 258.4 258.4 251.6 251.6 231 Starting type Electric starting (DC12/24V) Type ST3-3 ST3-5 ST3-8 ST3-10 ST3-12 ST3-15 ST3-20 ST3-24 ST3-30 ST3-40 Rated power (kw) 3 5 8 10 12 15 20 24 30 40 Excitation mode TRIPLE HARMONIC EXCITING Insulation class F Construction type IMB35 OR IMB35 With FLANGE Outside dimension(mm) 860 990 1750 1750 1750 2050 2050 2100 2200 2200 680 720 920 920 920 920 920 950 1030 1030 810 900 900 900 1000 1200 1200 1250 1300 1330
TECHNICAL DATA
Model
GF3-50 GF3-64 GF3-75 GF3-90 GF3-100 GF3-120 GF3-150 GF3-200 GF3-250 GF3-300 Rated output(kw) 50 64 75 90 100 120 150 200 250 300 Rated voltage(v) 400 400 400 400 400 400 400 400 400 400 Rated current(A) 90.2 115.5 135.5 162.5 180.5 216.6 270.7 361 452 541.5 Type 4105ZD 6105ZD 6105ZD 6105AZLD 6105AZLD 6105IZLD 6135AZD 12V135AD 12V135ZD 12V150D 12h power (kw) 56 84 84 110 110 132 175 220 279 310 Fuel consumption (g/kw.h) 231 224 224 218 218 218 235 235 235 238 Starting type Electric starting (24V) Type TZH-50 TZH-64 TZH-75 TZH-90 TZH-100 TZH-120 TZH-150 TZH-200 TZH-250 TZH-300 Rated power (kw) 50 64 75 90 100 120 150 200 250 300 Excitation mode TRIPLE HARMONIC EXCITING Insulation class F Construction type IMB35 OR IMB35 With FLANGE Outside dimension(mm) 2300 2850 2850 2852 3050 3350 3350 3600 3600 3320 0.30 1220 1220 1220 1220 1450 1500 1550 1550 1750 1330 1510 1510 1510 1540 2100 2100 2200 2330 2400 1)Please come down on information of low-noise diesel gen-sets(60Hz&>40Kw) series otherwise.
2)The diesel engine can be choosed by buyer.
3)The voltage can be changed according to buyer's requirements.
4)If there are any other special requirements, please contact us.
