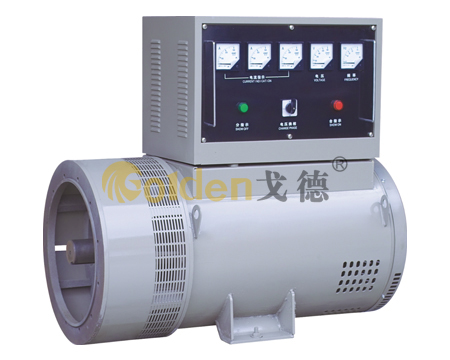

TZH Series Three Phase Compound Excitataion Generators
New TZH series generators have five advantages comparing with STC series generators. Compound excitation, simple circuit, high reliability, easy maintenance. Excellent dynamic characteristics, when load or unload suddenly, the circuit's light will not twinkle. Strong starting system, even if the motors of its 70% capacity volume they can be directly started and the switch will not trip. Approaching sine voltage wave and regulated power supply, output voltage can be safely used on computers. The deviation of the 3-phase line voltage will be less than 3% when the generators undertake unbalanced loading.
- Technical Parameters
- PDF Download
TECHNICAL DATA
Model Rated Capacity
(KVA)Rated Output
(KW)Rated Voltage
(V)Output Current
(A)Power Factor
cosφOutput Speed
(r.p.m)TZH2-30 37.5 30 400 54.1 0.8 150 TZH2-40 50 40 400 72.2 0.8 150 TZH2-50 62.5 50 400 90.2 0.8 150 TZH2-64 80 64 400 115.6 0.8 150 TZH2-75 93.8 75 400 135.5 0.8 150 TZH2-90 112.5 90 400 162.6 0.8 150 TZH2-100 125 100 400 181 0.8 150 TZH2-120 150 120 400 216.8 0.8 150 TZH2-150 188 150 400 271 0.8 150 TZH2-200 250 200 400 360.8 0.8 150 TZH2-250 312.5 250 400 451 0.8 150 TZH2-280 350 280 400 505.1 0.8 150 TZH2-300 375 300 400 541 0.8 150 TZH2-320 400 320 400 577 0.8 150 TZH2-350 437.5 350 400 630 0.8 150 Special voltege also avaible
Note:All the rating values are base on continuous duty.0.8p.f.Max .Ambient tempreture 40 degree ,Max altitude 1000m
