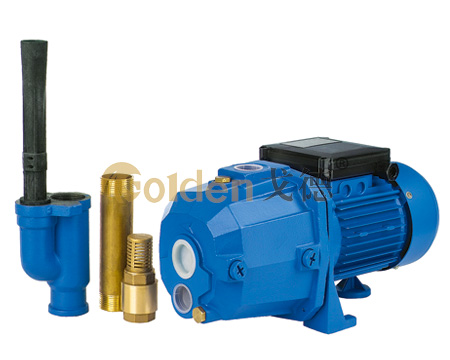

JETDP Self-priming Deep Well Pump
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
Siminal like JDW Series DP series are suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from deep well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and increasing of water pressure
- Technical Parameters
- PDF Download

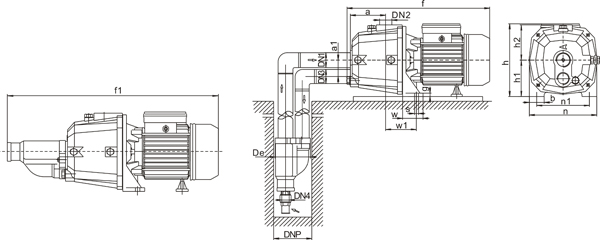

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYDNP DN1 DN2 DN3 De a a1 f f1 h h1 h2 n n1 w w1 b g s NW GW L W H 20'Cont DP255A 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11 14.8 15.8 420 300 230 850 DP370A 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11 15.3 16.4 420 300 230 850 DP550A 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11 16.3 17.4 420 300 230 850 DP750A 4" 1.25" 1" 1" 96 95 43 387 520 196 98 95 182 142 55 84 40 9 11 17.3 18.4 420 300 230 850
TECHNICAL DATA
TYPE Power Current
(A)Size
DN1XDN2XDN3Capacitor
(mF)Total Head
(m)Enjector Type Sect. H
(m)Capacity l/min At discharge head m KW HP 10 15 25 35 DP255A 0.25 0.33 2.1 1.25"X1"X1" 12 40 E20 10 50 34 12 8 E20 15 34 20 5 5 E30 20 17 13 7 4 DP370A 0.37 0.5 2.4 1.25"X1"X1" 16 50 E20 10
42 18 15 E20 15
25 16 10 E30 20
20 10 7 DP550A 0.55 0.75 3.5 1.25"X1"X1" 16 55 E20 15
38 24 28 E30 20
30 17 15 E30 30
21 12 10 DP750A 0.75 1 4.6 1.25"X1"X1" 20 55 E20 15
50 43
E30 20
40 30
E30 30
31 25
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
