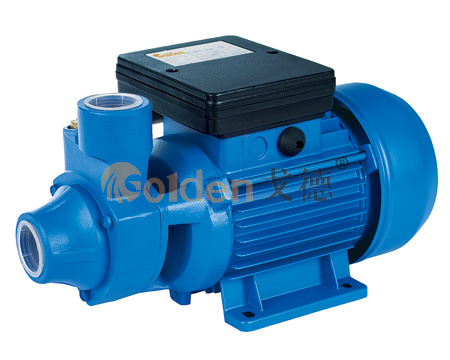

IDB Series Peripheral Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
IDB series are suitable for pumping clean water. They are particularly suitable for domestic applications such as Water supply from wells and pools, pressure boosting, garden sprinkling, washing booths.
- Technical Parameters

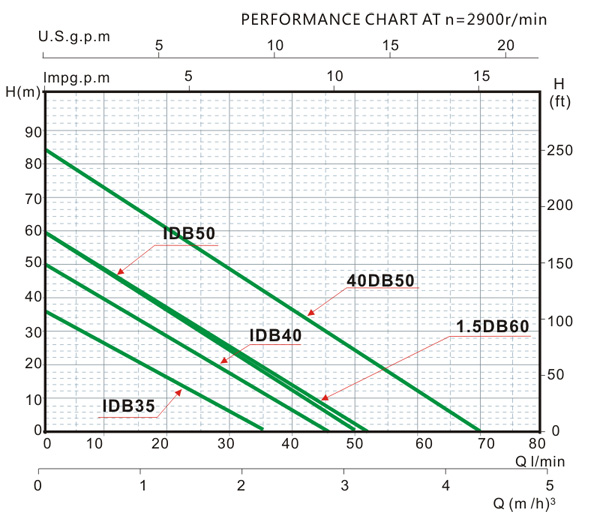

- Performance curves
- PDF Download

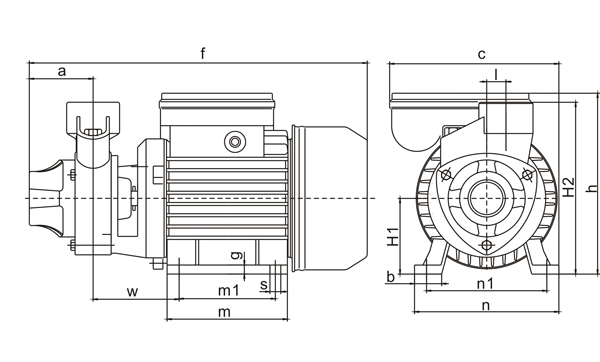

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h c H1 H2 l m m1 n n1 w b g s NW GW L W H 20'Cont IDB35 53 281 151 141 63 143 16 100 80 120 100 72 22 7.5 9 5.3 5.7 295 155 175 3000 IDB40 51 725 151 141 63 143 16 100 80 120 100 72 23 7.5 9 7.8 8.4 335 180 200 3000 IDB50 53 305 170 155 71 157 20 110 90 135 112 77 25 9 10 10.8 11.4 335 180 200 2000 1.5DB60 55 309 170 155 71 157 20 110 90 135 125 79 25 9 10 10 11 415 195 225 2000 40DB50 90 405 193 205 80 198 21 130 100 152 125 100 25 10 11 12 23 415 195 225 1050
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 10 20 25 30 35 40 50 60 IDB35 0.37 0.5 1.5 8 36 35 1"× 1" 9 22 14 18 6
IDB40 0.75 0.55 2 12 50 45 1"× 1" 9 31 21 16 11
IDB50 0.75 1 3.7 16 60 50 1"× 1" 9 40 30 24 18 11 6 - - 1.5DB60 1.1 1.5 4.6 20 60 51 1.5"× 1.5" 9 48 38 32 26 20 14 3 - 40DB50 1.5 2 6.4 30 84 70 1.5"× 1.5" 9 70 58 54 48 41 36 24 12 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
