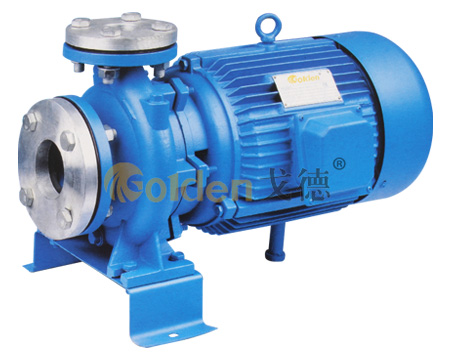

CM系列
工作条件：
最高流体温度为+80℃
最大可承受的压力10bar
最高环境温度40℃
最高流体温度为+80℃
最大可承受的压力10bar
最高环境温度40℃
- 性能参数图
技术参数
型 号 电动机
功率
(KW)
重量
(Kg)m³h
l/1容量 2 4 6 8 10 12 15 18 21 25 30 35 40 45 50 60 70 80 100 120 140 160 200 250 300 33 66 100 133 166 200 250 300 350 416 500 583 666 750 833 1000 1166 1330 1666 2000 2333 2666 3333 4160 5000 CM32-123 0.75 32 H
E
A
D
(m)15 15 14.8 14.5 14 13.3 11.7 CM32-122 1.1 34 18.5 18.5 18.4 18.1 17.2 16.5 15 11.6 CM32-121 1.5 36 22 22 22 21.8 21.5 20.8 19.3 17.2 CM32-163 3 63 28 28 28 27.9 27.8 27.6 27.2 26.5 25.5 23.5 20 CM32-161 4 68 36 36 36 36 36 36 35.8 35.4 34.6 33 30 CM32-203 5.5 88 45 45 45 45 45 45 44.9 44.7 44.2 42.7 40 CM32-201 7.5 96 57 57 57 57 57 57 57 56.8 56.4 55.2 52.5 CM40-123 1.1 34 11.3 11.2 11 1.8 10.4 9.9 9.7 9 8 CM40-122 1.5 37 15.2 15.1 15 14.8 14.5 14.1 13.6 12.8 11.8 10.4 CM40-121 2.2 39 19.7 19.6 19.5 19.3 18.9 18.5 18.1 17.4 16.2 15.1 CM40-163 4 68 25.1 24.9 14.7 14.3 23.2 21.7 19.8 16.9 CM40-161 5.5 88 32.8 32.7 32.6 32.4 34.6 30.4 28.4 233 CM40-203 7.5 99 44.1 44 43.8 43.5 42.3 40.6 38.3 30.3 CM40-201 11 136 55.8 55.6 55.4 54.9 54.1 53.1 50.9 44.4 CM40-255 11 139 58.5 58.5 58.5 58.5 58.5 58.5 58.3 58.2 57.6 56.5 55 52.8 51.4 CM40-254 15 144 69 69 69 69 69 68.9 68.8 68.7 64.8 67.9 66.8 64.9 62.6 60 57 CM40-252 18.5 147 83 83 83 83 83 83 83 83 82.9 82.7 82.2 81.2 79.5 77 73.7 CM40-251 22 158 91 91 91 91 91 91 91 90.8 90.7 90.5 89.7 88.5 86.3 84 81.4 74.5 CM50-123 1.5 45 11.8 11.6 11.2 11 10.6 9.6 8.9 8.3 CM50-122 2.2 44 15.5 15.3 15 14.6 14 13.4 12.8 12 11 CM50-121 3 52 20 19.8 19.6 19.2 18.6 18 17.4 16.5 15.6 CM50-164 4 72 22.2 21.3 20.5 19.2 17.8 14.5 CM50-163 5.5 92 26 25.3 24.5 23.4 22.1 19 15 CM50-161 7.5 106 34 33.7 33.2 32.4 31.4 28.6 24.8 20 CM50-203 11 131 43 42.6 42.6 40.8 39.4 35.2 28 CM50-201 15 141 56 54.6 54.6 53.1 51.9 48.4 43.2 35 CM50-254 18.5 167 69 68.8 68.4 67.6 66.5 63.2 58.2 50 CM50-253 22 198 77 76.5 76 75 74 72.3 67.5 60 CM65-165 5.5 100 21.4 21.3 19.9 17.4 CM65-164 7.5 135 25.4 23.2 23.2 21.7 17.4 CM65-163 11 140 30 28.6 27.5 26.3 22.7 CM65-162 11 142 34.1 33 32.8 31.2 27 21.7 CM65-161 15 166 38.6 38 36.7 36.2 32.4 27 CM65-202 18.5 173 47.3 46.3 45 41.9 37.1 CM65-201 22 204 54 53.2 52.1 49.1 44.2 38 CM80-165 75 105 21.6 19.5 17 12.8 CM80-164 11 146 25.8 23.5 22 17.6 CM80-163 11 148 30 28.5 26.3 23.2 16 CM80-162 15 156 35 33 31.8 22.7 24 CM80-161 18.5 166 40 38.6 36.6 33.8 29.8 25 CM80-203 22 218 43.5 43.3 42.6 41.3 39.1 35.8 24.5 CM80-202 30 246 50 49.6 48.8 47.7 46 43.5 33.1 CM80-201 30 248 56.4 56 55.1 53.8 52 49.2 40.1 CM100-205 22 228 31 29.5 28.5 26.5 22.5 CM100-204 30 256 36 34.5 33.5 31.5 27.5 20 CM100-203 30 258 41.8 20.5 39.5 37.5 33.5 27
